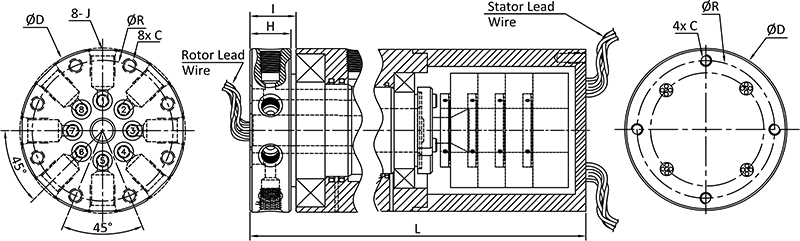

Notes: Dimensions are in millimeters (mm); Not all of the model are list in this table, if can not find suitable products, please contact us freely.
Direction of lead wire exits
connectors and heat shrink tube
Lead wire length
Transmit combined high speed data（Ethernet ,USB,Profibus）
Customize for high temperature,shockproof environment
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit,lead wire exits, lead wire length, special connectors,high temperature,large current,military level:
order procedure of customized slip ring:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Slip Ring for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
All values listed under Technical Specifications are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed and duty cycle. Contact COSMAU if your application requires operating close to the maximum rotational speed with a continuous duty cycle. Please consult with COSMAU regarding your specific application requirements.
Customized model no. description:
How to order: choose your options
Model No. Description: MEP-201-S12
S12: 12 Circuits Signal
Note: The circuits, current, size, signal type, installation are available custom solutions.
