How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
How to order: choose your options

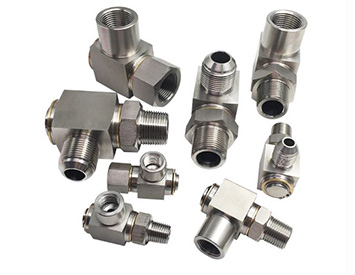

Model No. Description: CGYDJ-6
CGYDJ: High pressure
4: Rc1/4
6 --Rc3/8 thread size
8 --Rc1/2 thread size
12 --Rc3/4 thread size
16 --Rc1 thread size
RH: Rotor thread direction --Right;
LH: Rotor thread direction --Left;
Mounting Flange
