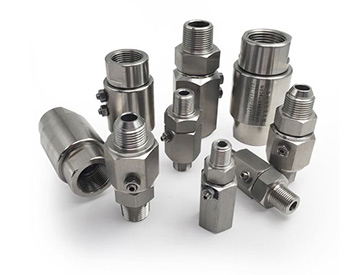

| Model |
A |
B |
C |
L1, L2 |
L |
S |
| CGYDH-8 |
Rc1/4" |
22 |
28 |
16 |
59 |
6 |
| CGYDH-10 |
Rc3/8" |
25 |
31 |
19 |
64 |
9 |
| CGYDH-15 |
Rc1/2" |
30 |
36 |
22 |
73 |
12 |
| CGYDH-20 |
Rc3/4" |
31 |
42 |
21 |
86 |
16 |
| CGYDH-25 |
Rc1" |
44 |
49 |
26 |
100 |
23 |
| CGYDH-32 |
Rc1-1/4" |
60 |
73 |
27 |
121 |
30 |
| CGYDH-40 |
Rc1-1/2" |
66 |
83 |
32 |
128 |
37 |
Notes: Drawings not actual size, dimensions are in millimeters. Max.pressure: 30MPa, 100RPM, Male-Female connection, Male-Male connection can be option.
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
How to order: choose your options
Model No. Description: CGYDH-8
CGYDH: High pressure
8: Rc1/4
10 --Rc3/8 thread size
15 --Rc1/2 thread size
20 --Rc3/4 thread size
25 --Rc1 thread size
RH: Rotor thread direction --Right;
LH: Rotor thread direction --Left;
Mounting Flange
